14-00

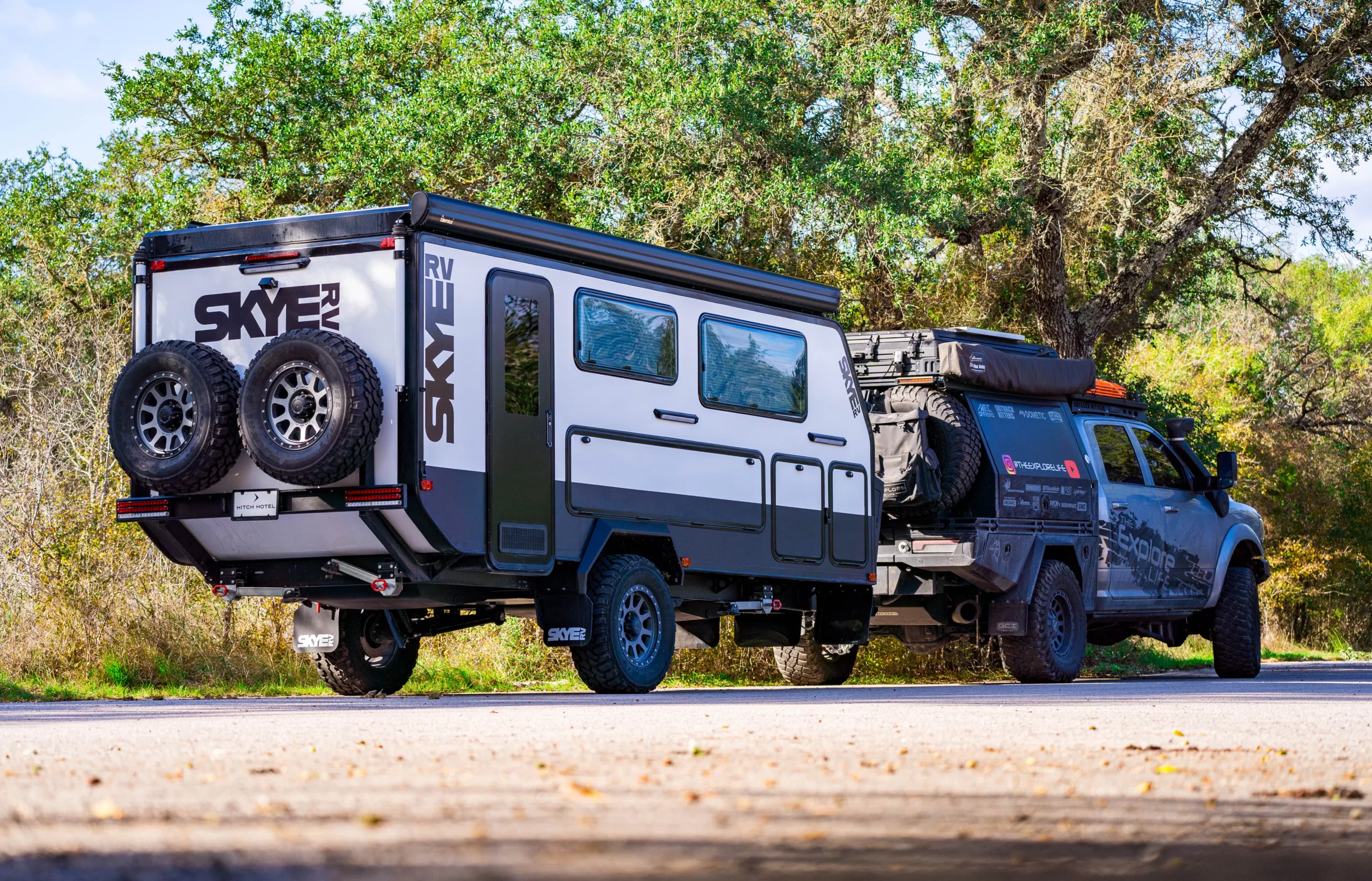

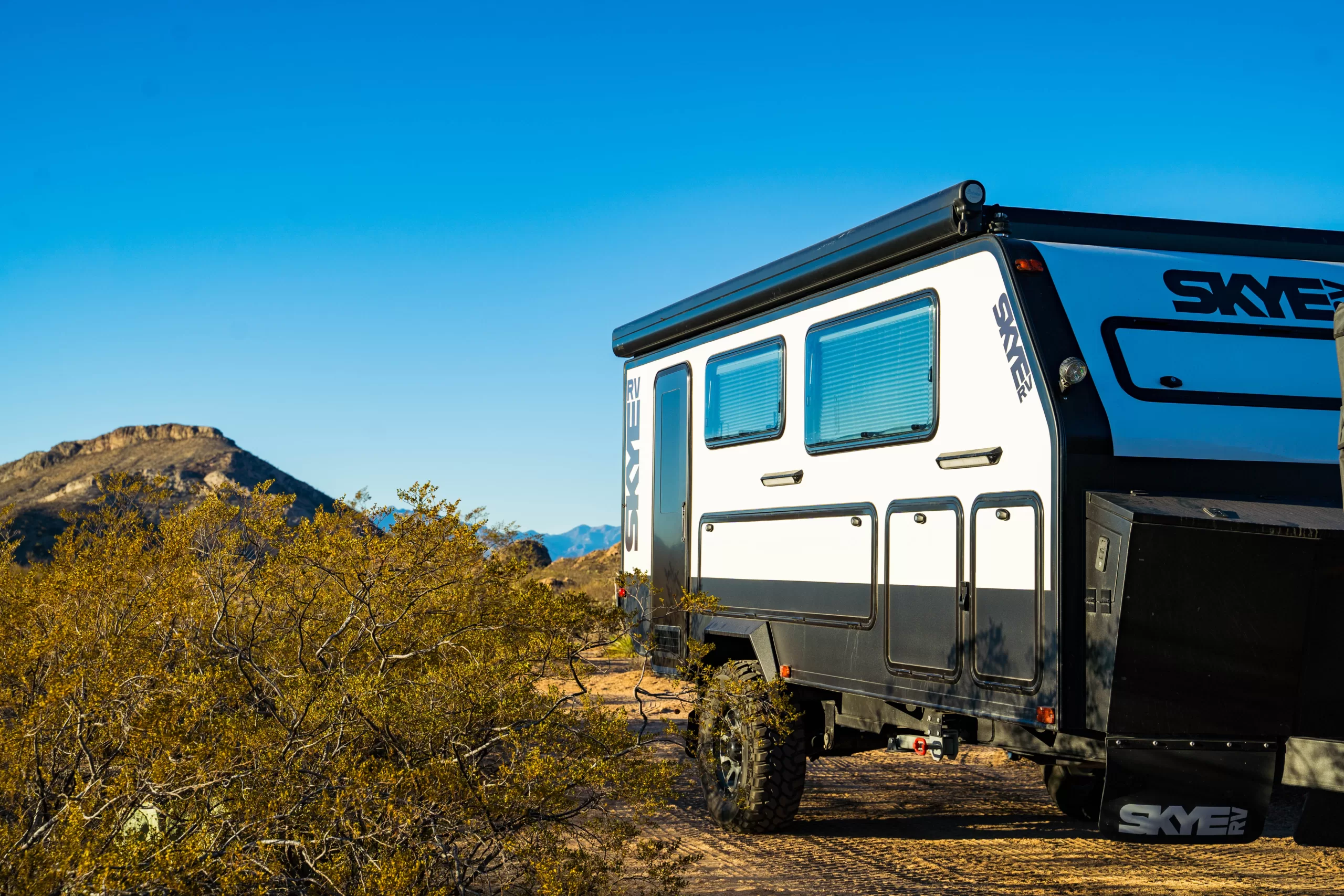

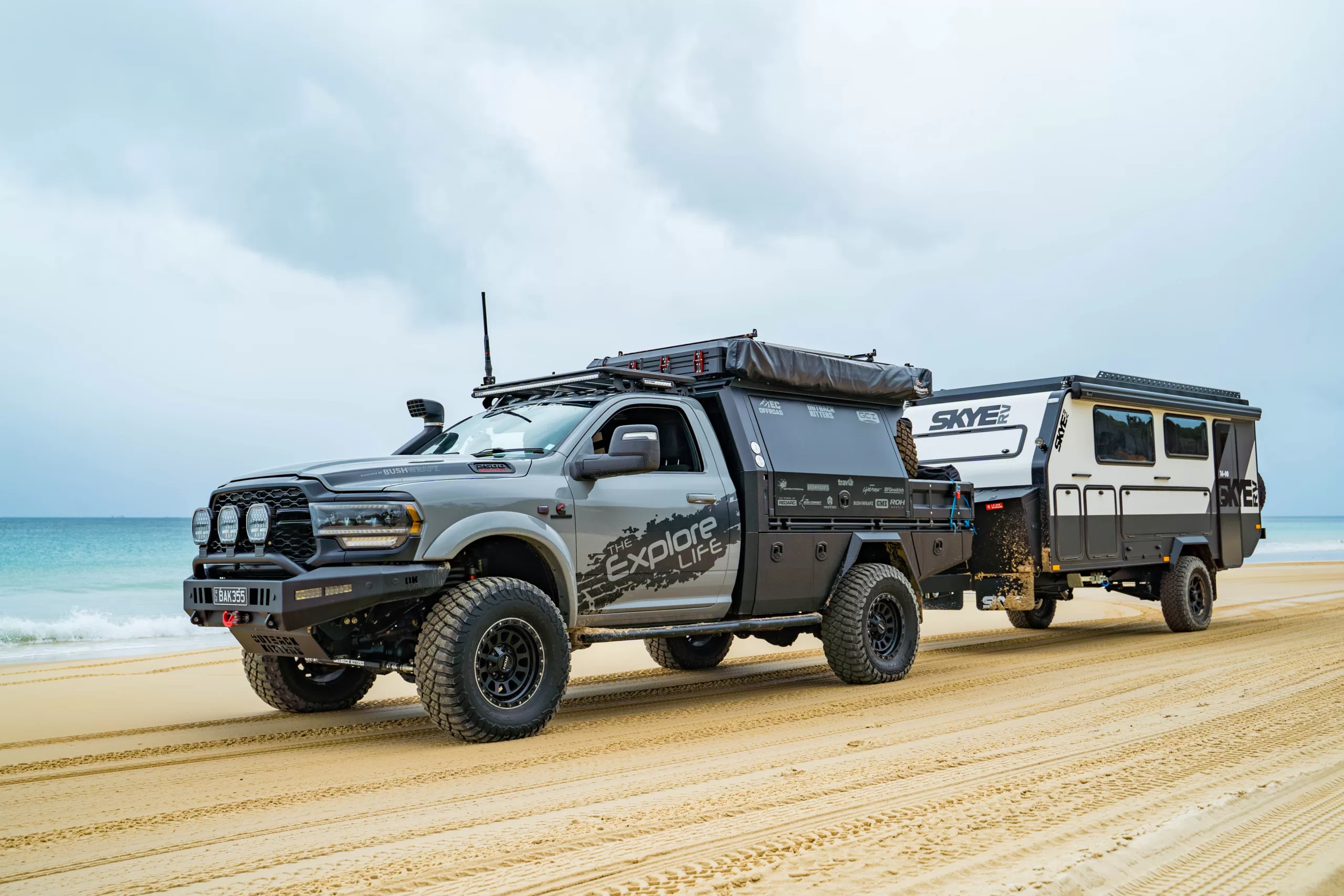

Rugged construction defines this manoeuvrable RV

14-00

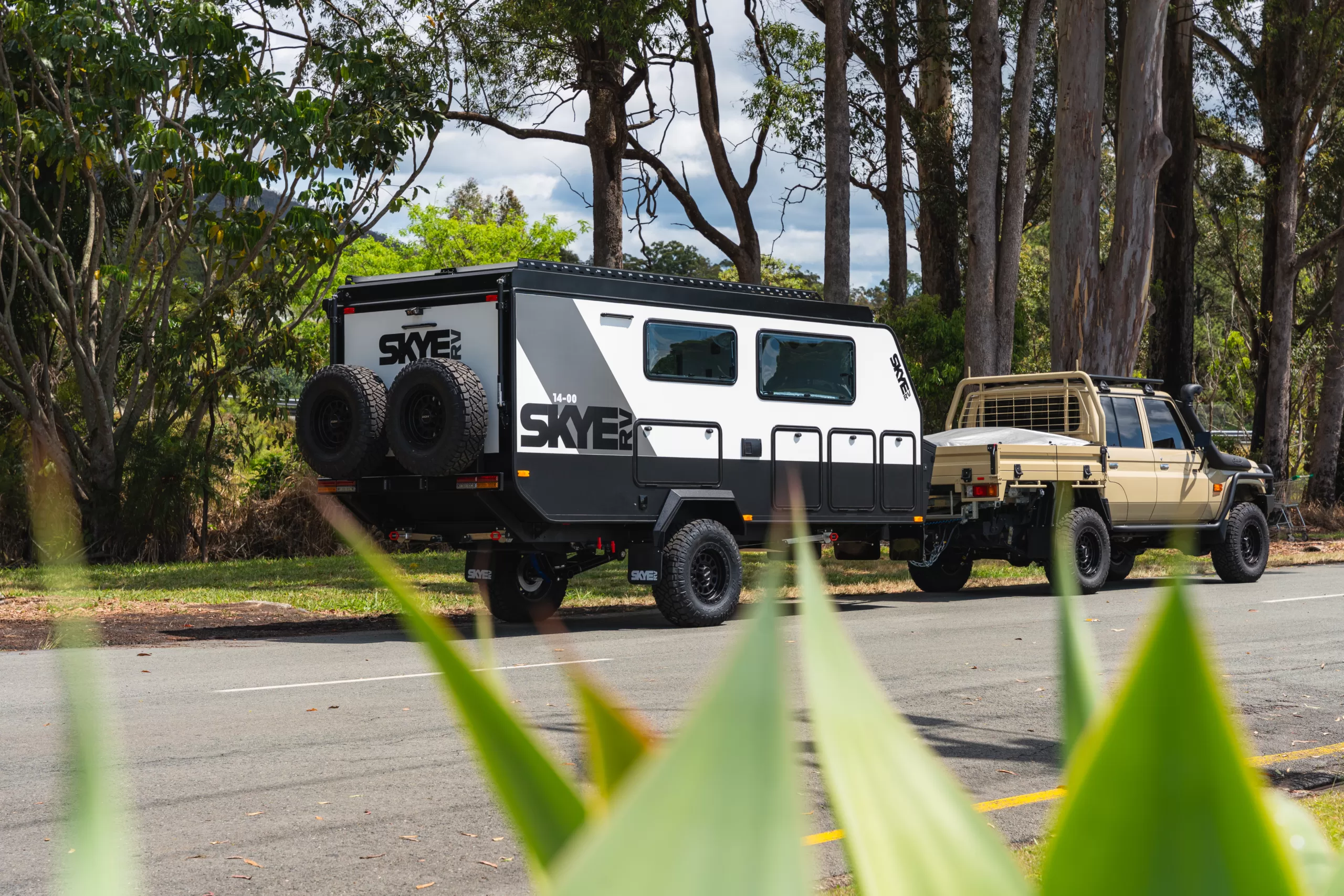

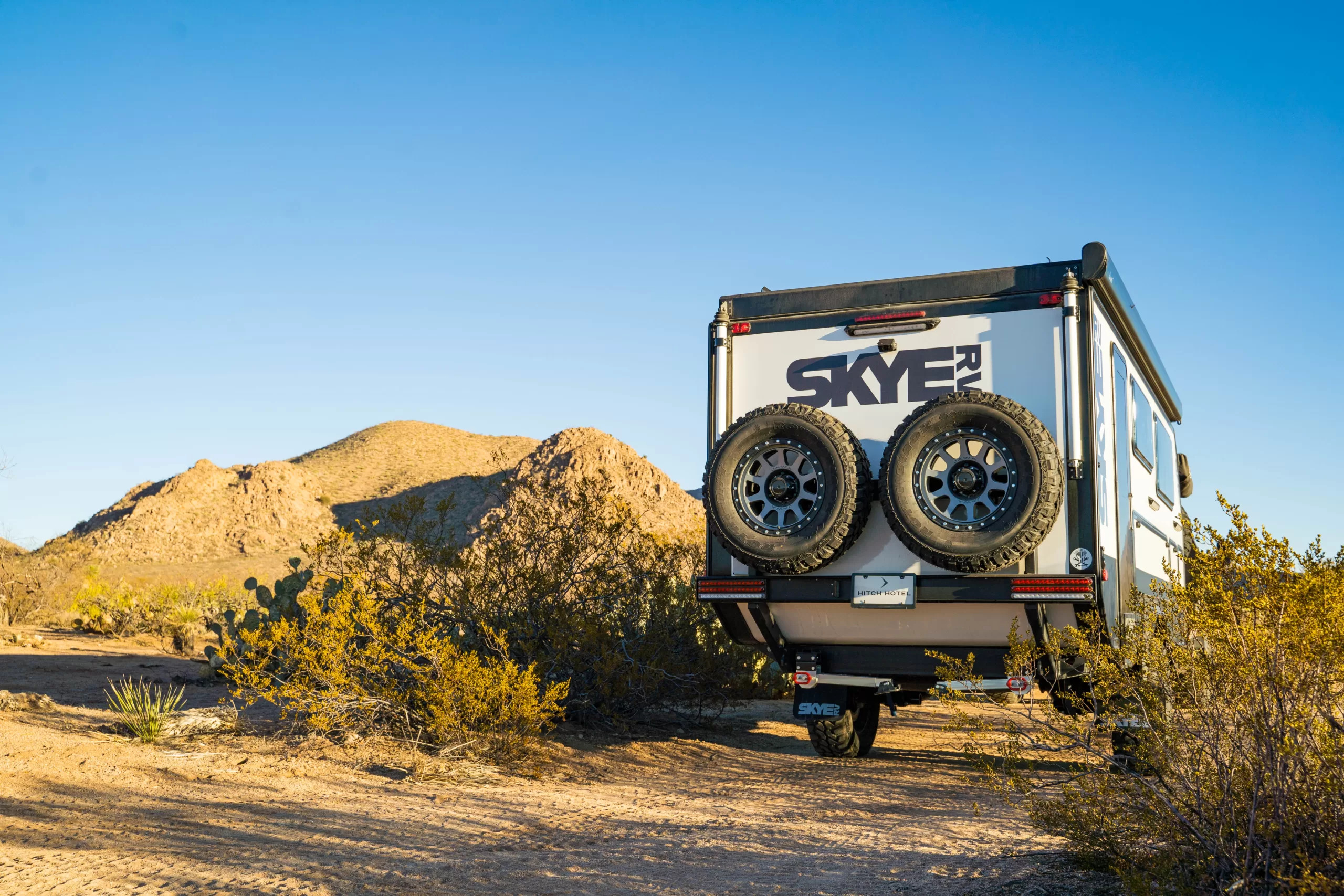

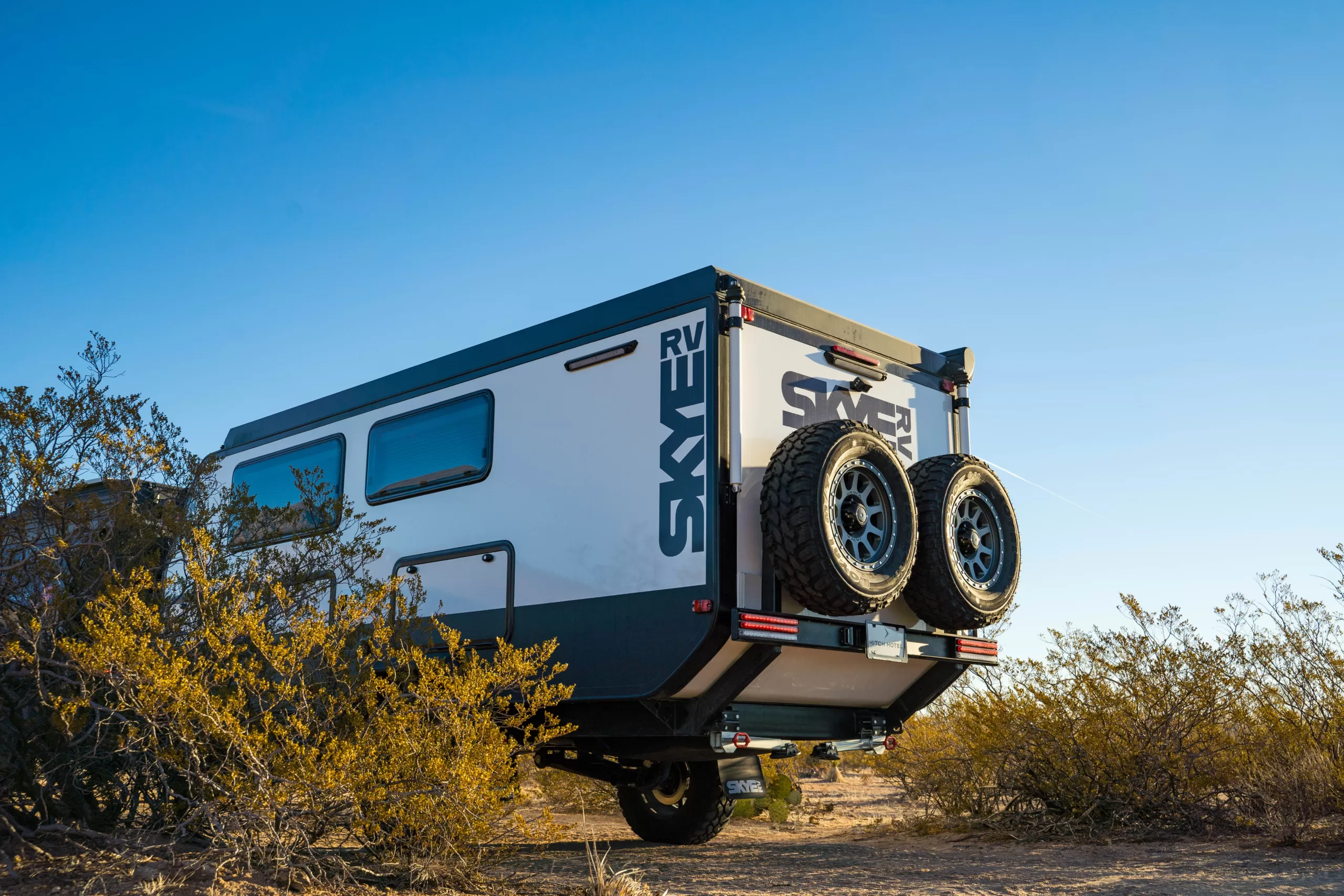

Capable of exploring the most vicious trails

14-00

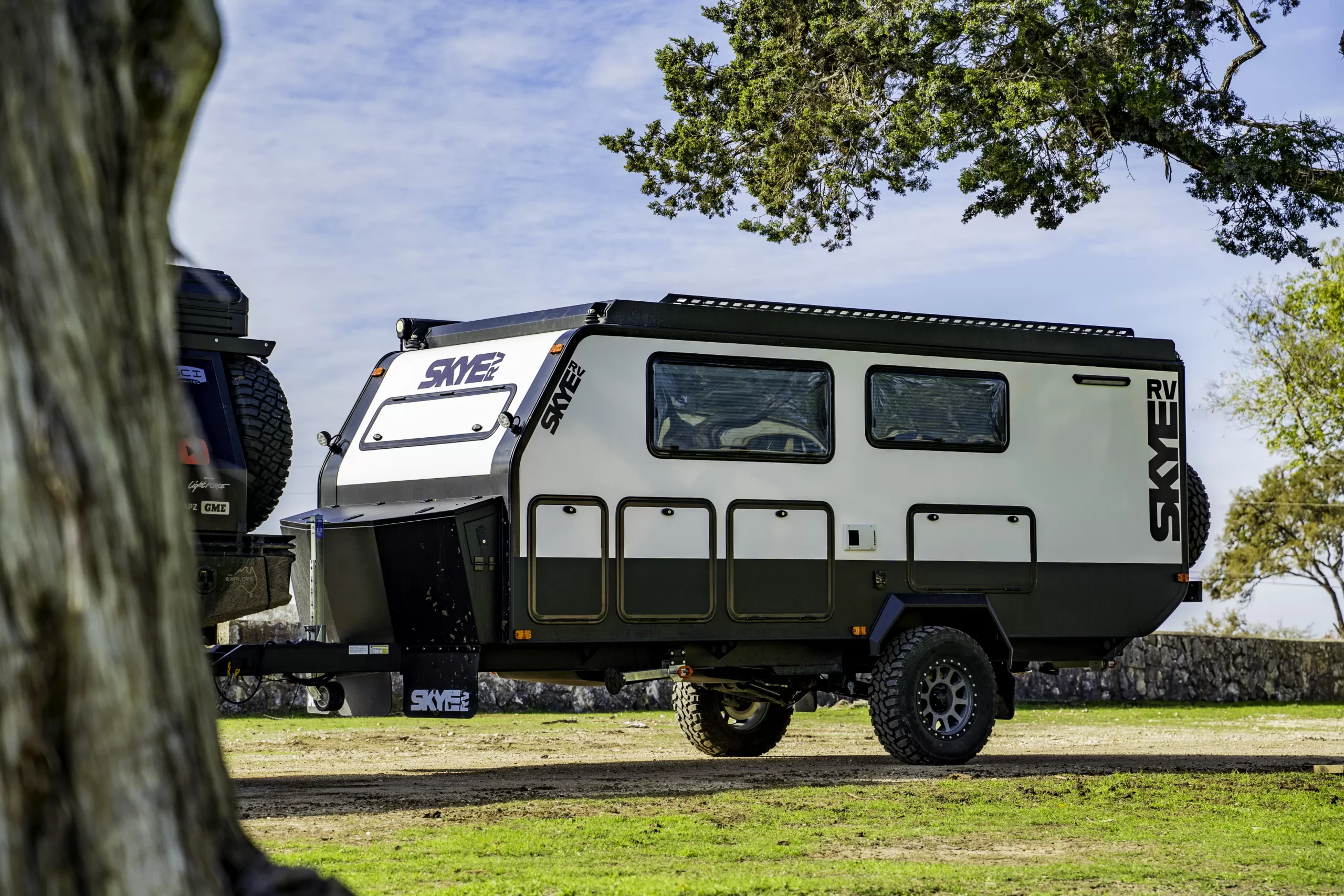

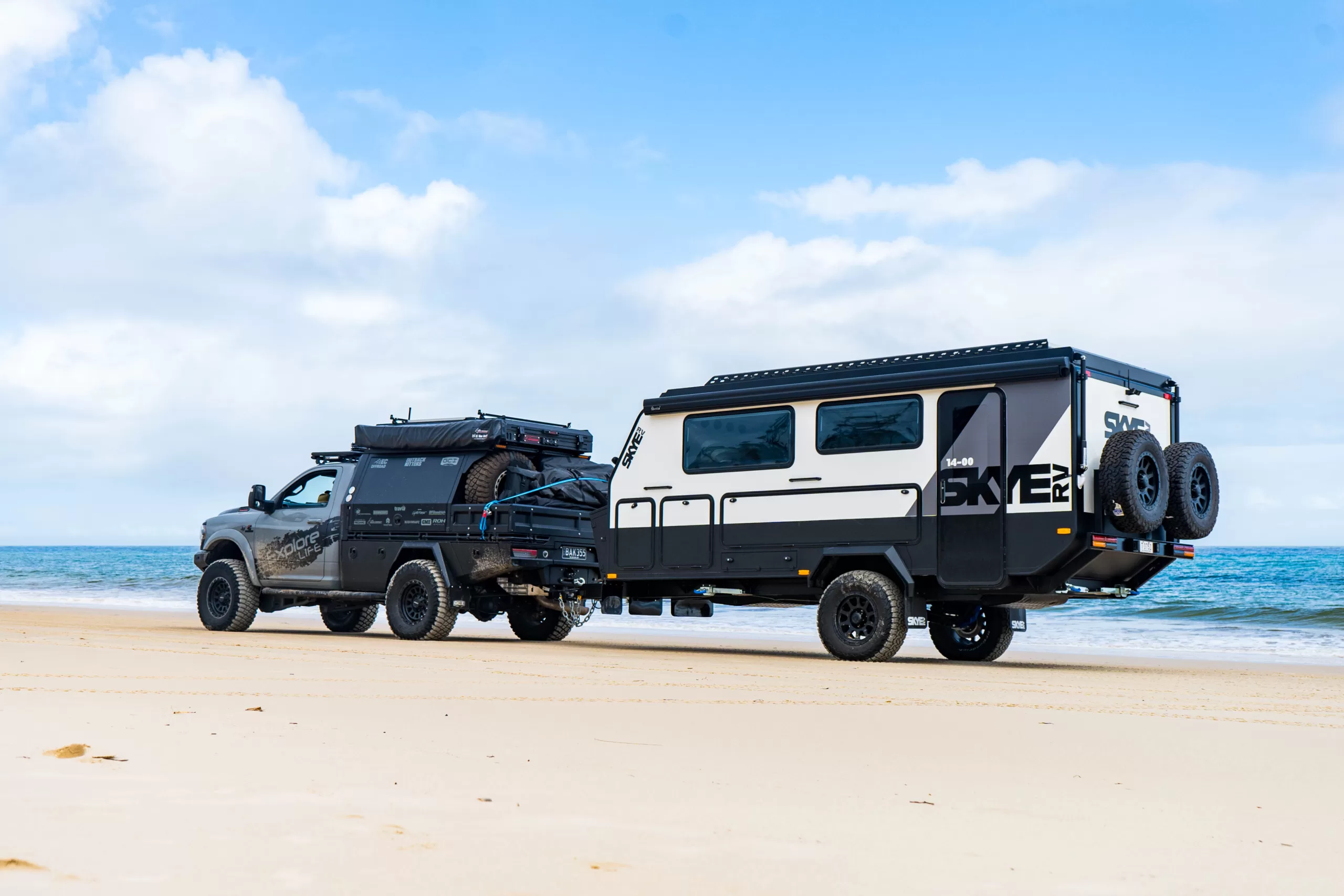

Ready for your next adventure

Overview

Type: Hybrid Camper – Poptop
Sleeps: Sleeps: 2 + 2 kids roof section or sofa option
Overall Length: 6.84m (Aust./NZ)  22’5″ (USA)
Overall Width: 2.180m (Aust./NZ) 7’02″ (USA)
Interior Length: 4.345m (Aust./NZ) 14’03″ (USA)
Interior Width: 1.89m (Aust./NZ)   6’2″ (USA)
Travel Height: 2.73m (Aust./NZ) 8’11″ (USA)
Tare / Dry weight/UVW:2110 kg (Aust./NZ)  4651 lbs (USA)
Suspension:Air bag – Independent swing-arm
Construction: Composite fibreglass body construction
Roof Lift: Full electric roof lift
Mattress: Luxury Pocket spring pillow top mattress
Cooking: Interior and exterior kitchen
Ensuite: Compost toilet – shower
Solar: 4 * 330W panels – 1320W total

Specifications

Appliances

Air Conditioner:Split type AC in front tool box and front storage area
Fridge internal:12V Compressor Refrigerator 110L (AUS) 3.8 cu ft (USD)

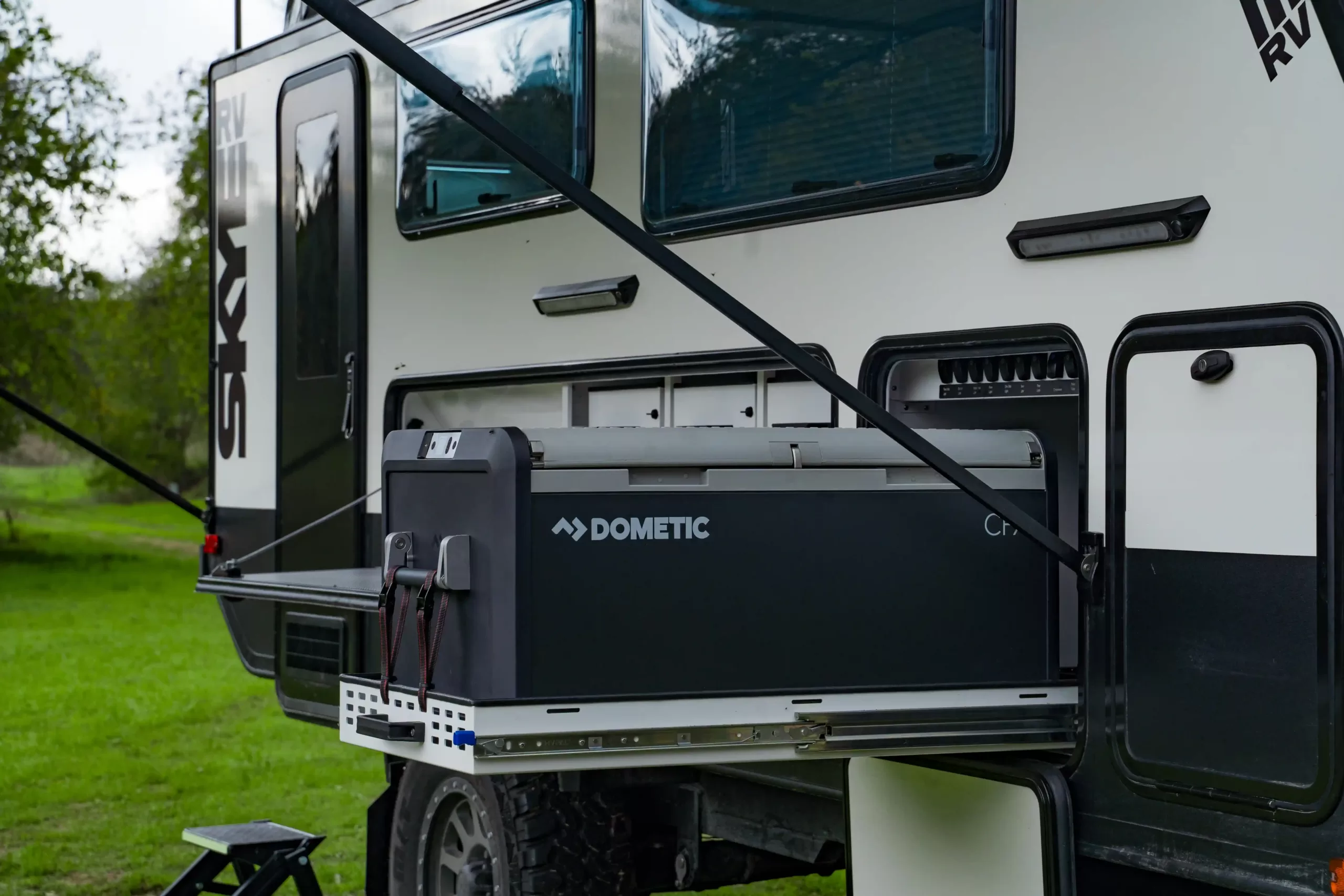

Fridge external:95 litre – fridge and freezer (Aust.) (USA) 25 gal.
Washing machine:Washing machine (option to be installed in underside storage area)
Television:24″ HD smart LED TV (option on ensuite wall)
Hot water heater:Diesel hot water heater
Hot air heater:Diesel hot air heater
Induction cooker:Double burner induction cooktop (portable)
Gas cooker:2 burner gas cooker

Chassis

Chassis Protection:Chassis is hot dipped gal then painted to provide ultimate protection.
Chassis Design:Proven Chassis design – 150*50 Box section Main rails
Coupling:Cruisemaster DO35 coupling – 3500kg rating (Aust.) 7700 lbs (USA)
Suspension:Airbag adjustable Independent trailing arm suspension
Brakes:12″ Electric Hydraulic Disc Brakes Deemax components
Rims Tires:17″ Black “High load” Alloy Rims – 285 / 70 / R17″ A/T tire

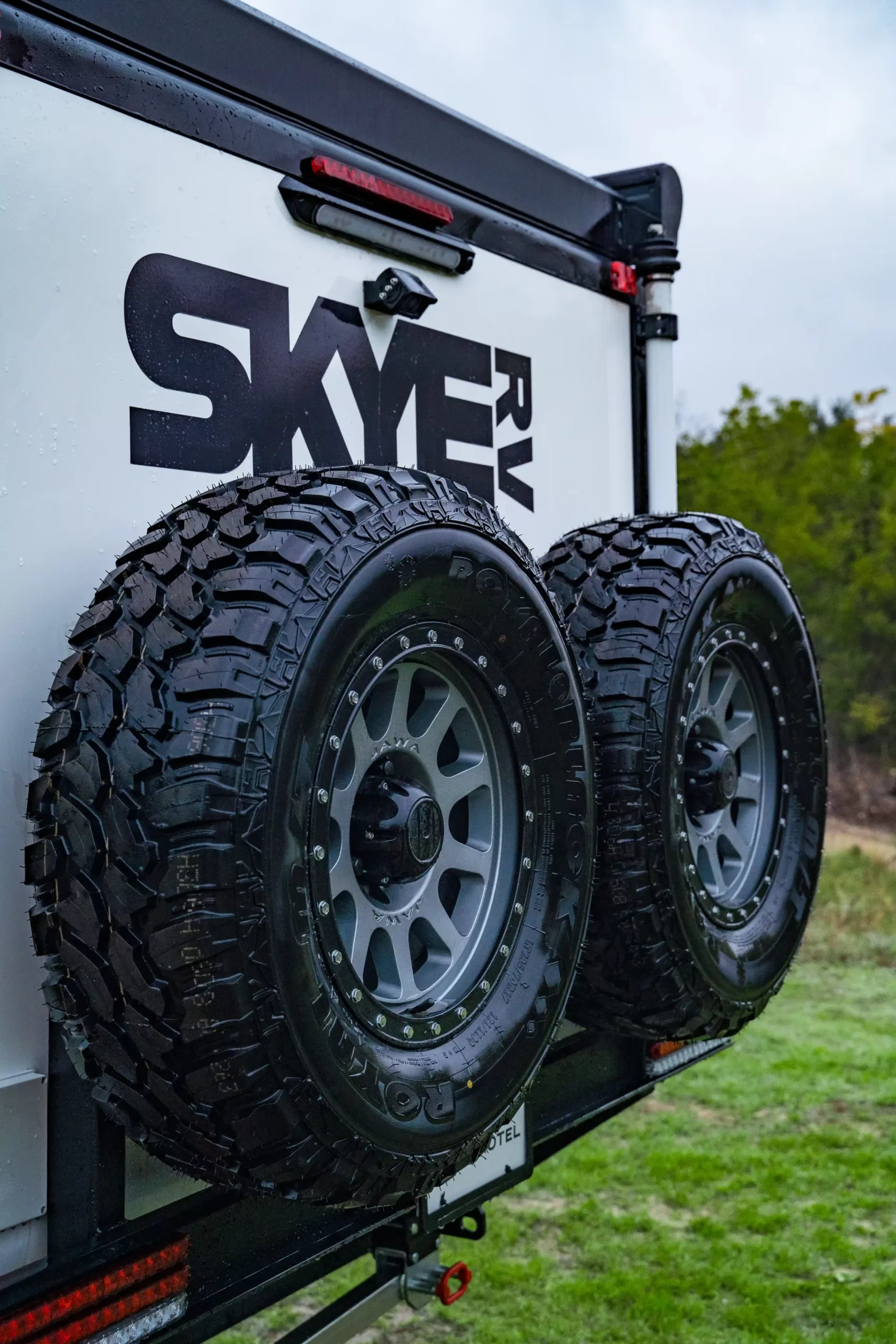

Rims Tires: Spare17″ Black “High load” Alloy Spare Rim – 285 / 70 / R17″ A/T tire
Jockey Wheel:12V Electric adjustable jockey wheel
Stabilizer legs:750mm drop down stabilizer legs
Recovery points:2x Rear recovery points

Dimensions and Weights

Body length:5.03m (Aust./NZ) 16’6″ (USA)
Overall Length: (Coupler to spare tires)6.84m (Aust./NZ) 22’5″ (USA)
Body External Width:1.95m (Aust./NZ) 6’5″ (USA)
External Height (Roof Down):2.73m (Aust./NZ) 811″ (USA)
External Height (Roof Extended):3.06m (Aust./NZ) 10’0″ (USA)
Internal Height (Roof Down)1.77m (Aust./NZ) 5’9″ (USA)
Internal Height (Roof Up)2.10m (Aust./NZ) 6’10” (USA)
Internal width:1.89m (Aust./NZ) 6’2″ (USA)
Tare Weight: (Aust) Dry weight / UVW: (USA)2110 kg (Aust./NZ) 4651 lbs (USA)
ATM Weight: (Aust) GVWR: (USA)2950 kg (Aust./NZ) 6503 lbs (USA)
Axle load rating: (Aust) GAWR: (USA)2900 kg (Aust./NZ) 6393 lbs (USA)
Load rating: (Aust) Payload: (USA)840 kg (Aust./NZ) 1851 lbs (USA)

Electrical

Mains power supply port:240V 15amp (Australia) 110V 30amp (USA)
Trailer lights connection:7 Pin flat trailer plug (Australia) 7 Pin round trailer plug (USA)
Brake actuator power:Red anderson plug for constant power to brake actuator – 20amp
RV battery charging:Grey anderson plug for Rv battery charge – 50amp
External solar panel connection:Red anderson plug rear chassis solar blanket input – 20 amp unregulated
Exterior lights: generalWork lights to each side of van white only
Exterior lights: kitchenWhite and amber lights to external kitchen area
Sorage area lighting:LED lighting tunnel boot storage areas – White
Under van lighting:LED lighting underside of van passanger side – Amber
Interior lighting:LED strip lights to main cabin – mains off for night sleeping mode
Reading lights:LED reading lights to main bed
Camera:Rear camera – wireless type
Charging ports:USB and USB-C charging ports
Power outlets:240V Power outlets  (Australia) 110V Power outlets  (USA)
Fans:2 × Fans
Solar:4*330W solar panels – 1320W total solar – glass type panels
Batteries:VICTRON – LiFePO4 Battery 12,8V/330Ah Smart (OPTION FOR SECOND 330AH)
Battery management:VICTRON – GXTOUCH 50
Inverter:VICTRON – MultiPlus-II 12/3000/120-32 230V
Ac to Ac charger:VICTRON – SmartSolar MPPT 100/50
Dc charger:VICTRON – Orion-Tr Smart 12/12-30 or 12/12/50
Solar mppt:VICTRON – SMART SOLAR MPPT 75/15

Exterior

RV body construction:Fiberglass composite walls 30mm overall – German fiberglass skins
Body protection:Fully bonded shell with bonded Aluminum edge trim
Flooring:Insulated 30mm composite floor

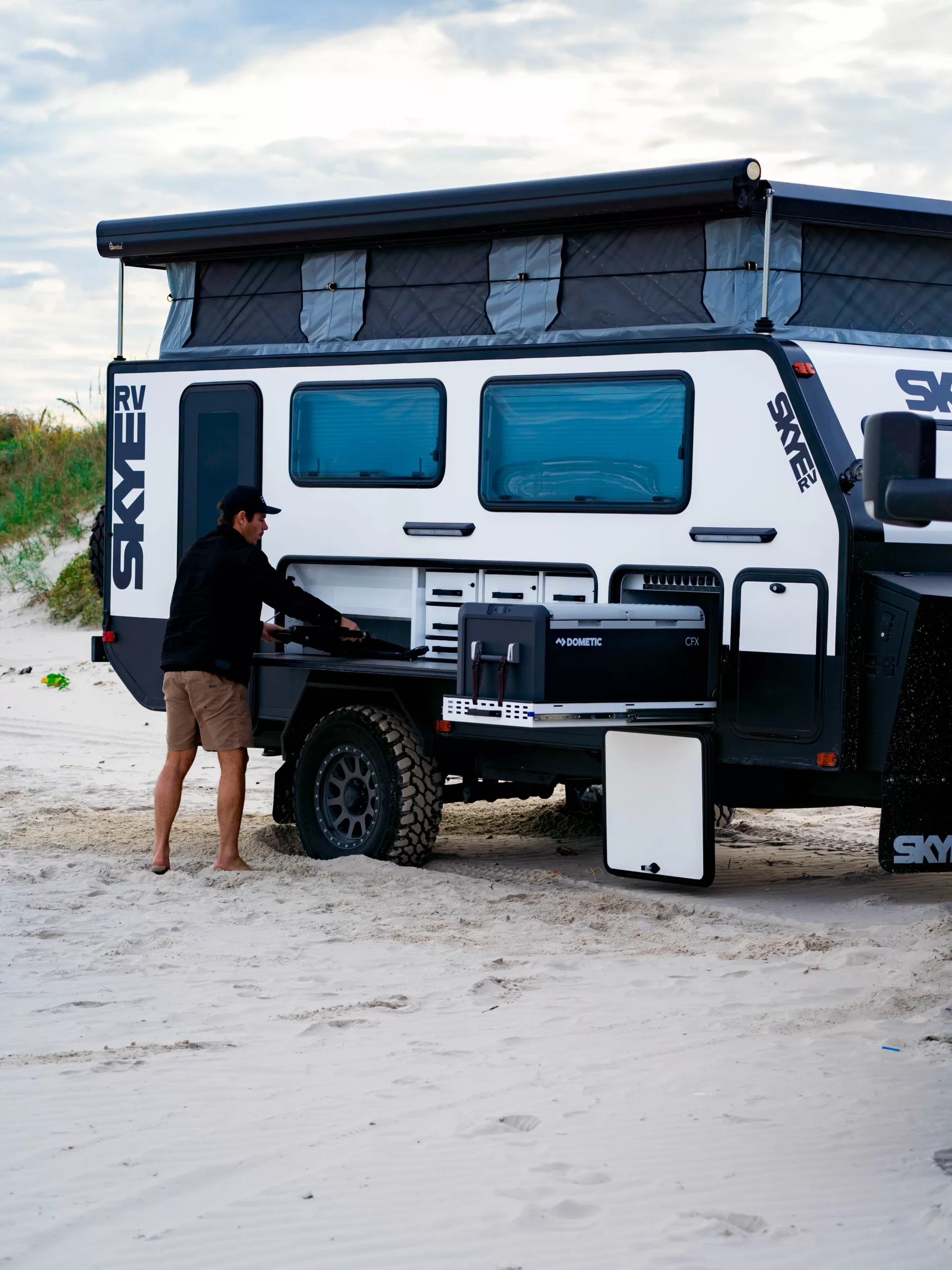

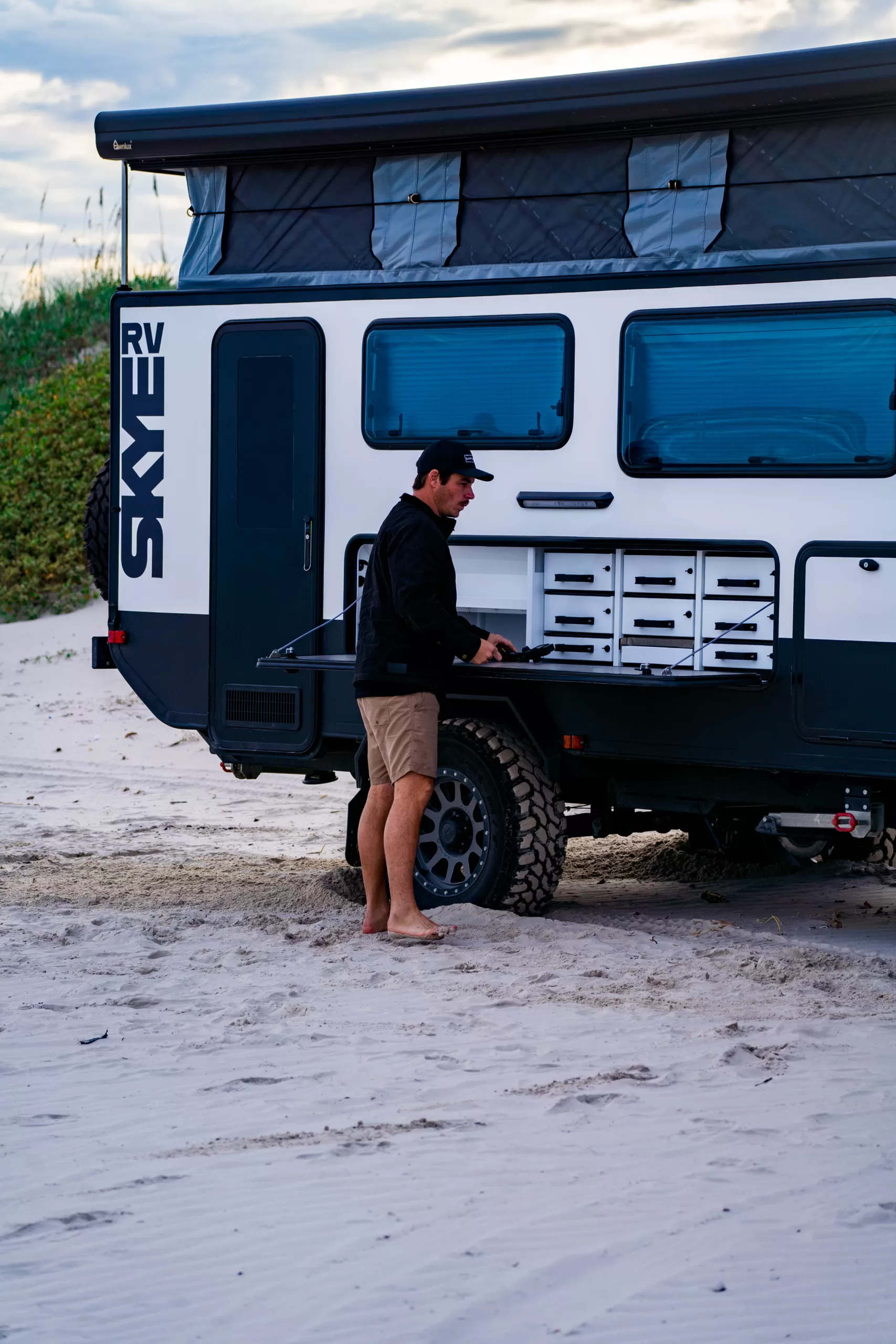

Exterior kitchen:Best in class exterior kitchen with induction cook top hot and cold water

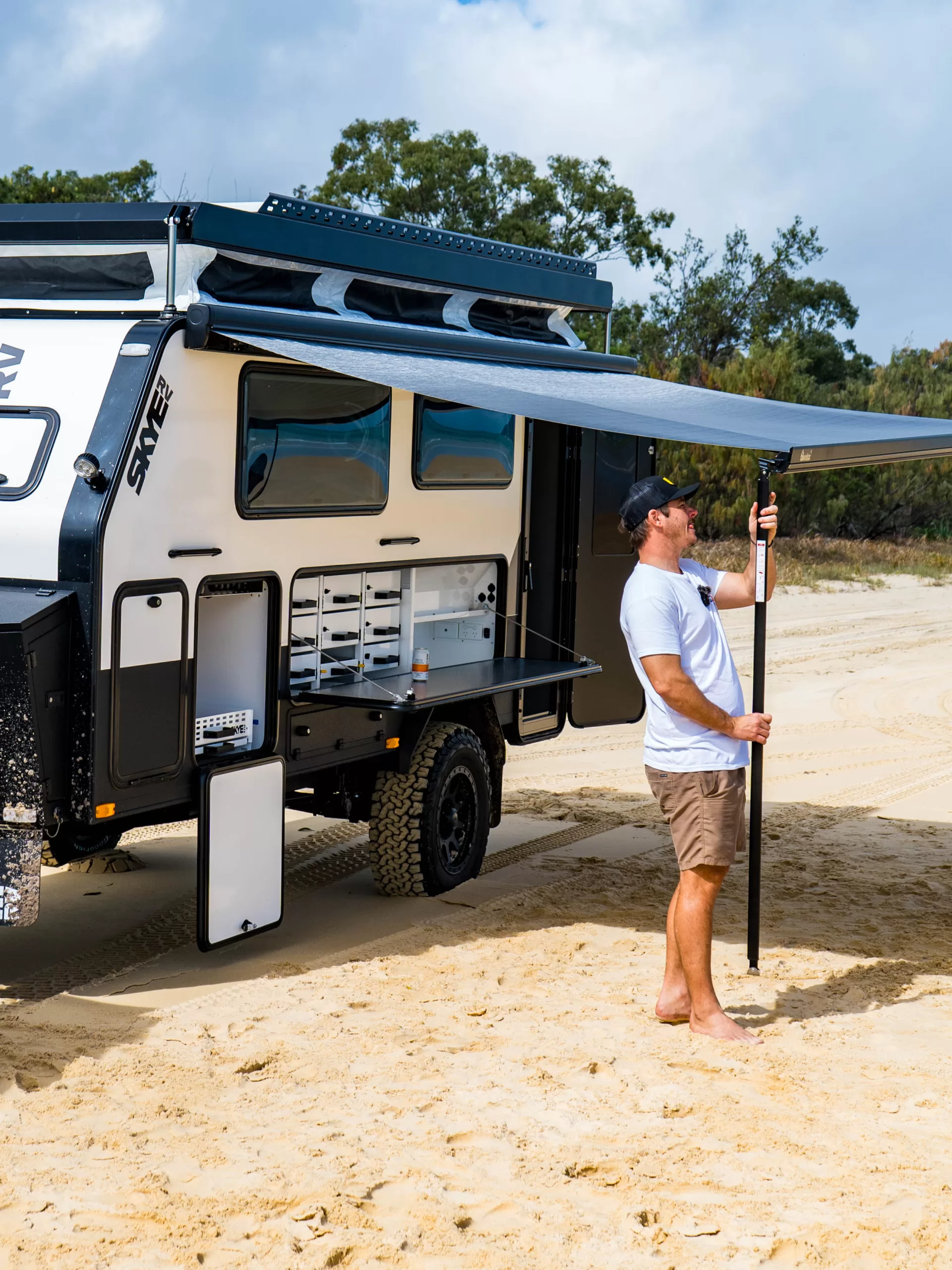

Awning:Aluminum cassette type wind out awning
Windows:Dual glazed tinted windows
Entry door:Entry door with crimsafe type security screen
Body protection:Black “rubber type” protection paint to 450mm height for wall protection
Hatch doors:Double rubber seal quality hatch doors
Roof lift:4* electric actuator roof lift
Tool box storage areas:Front tool box with jerry can, gas and AC
Jerrycan Holders:Options/brands/spec. in review/selection
Entry Stairs:Black Aluminum entry step – separate loose item
BBQ slide:BBQ slide out in front storage boot
Bike carrier mount:Options/brands/spec. in review/selection
Wood box option:To be added to front of van above tool box
Dust prevention:Options/brands/spec. in review/selection
Aluminum component panelAluminum laser cut plate to front of van for accessories attachment

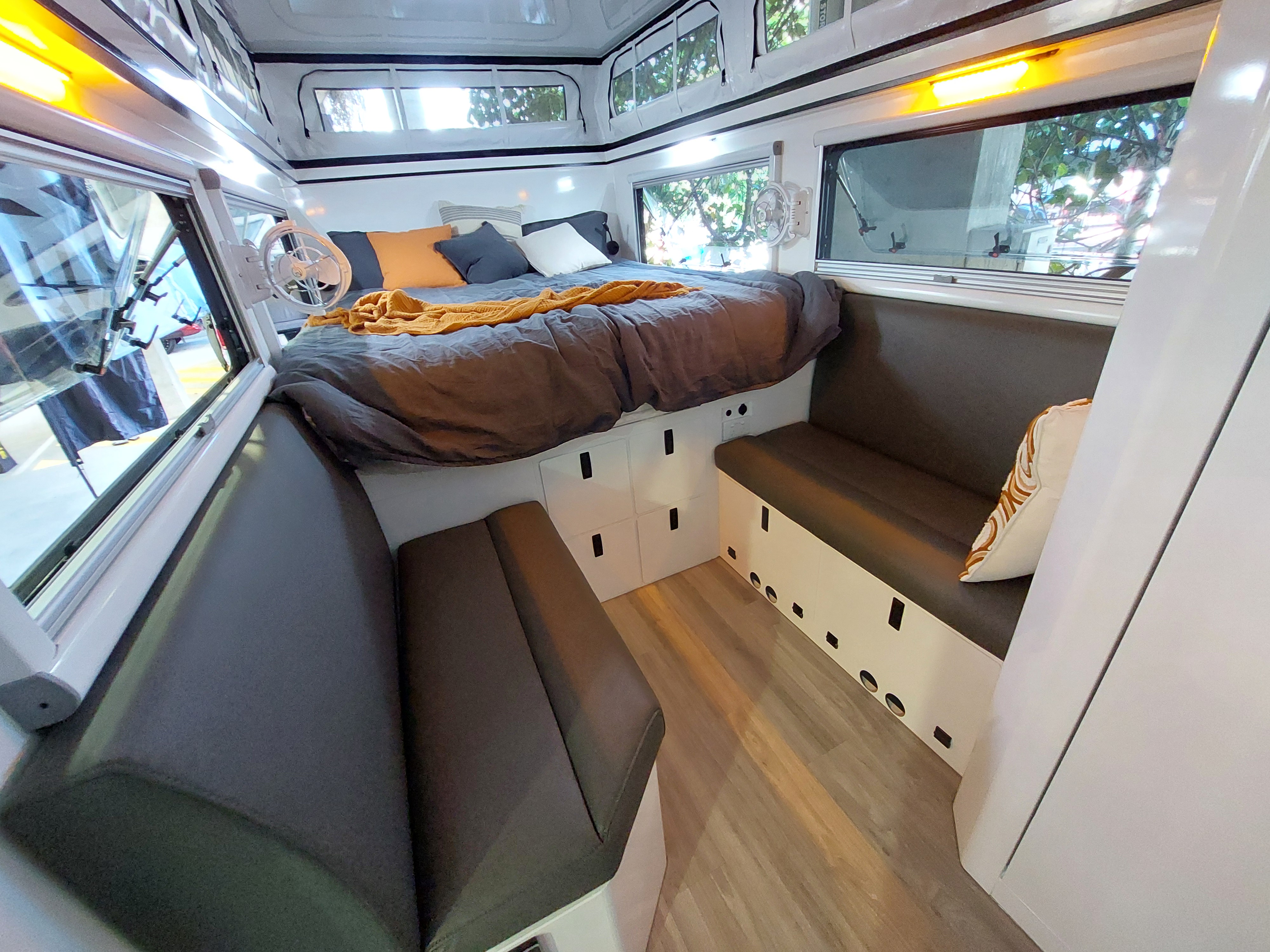

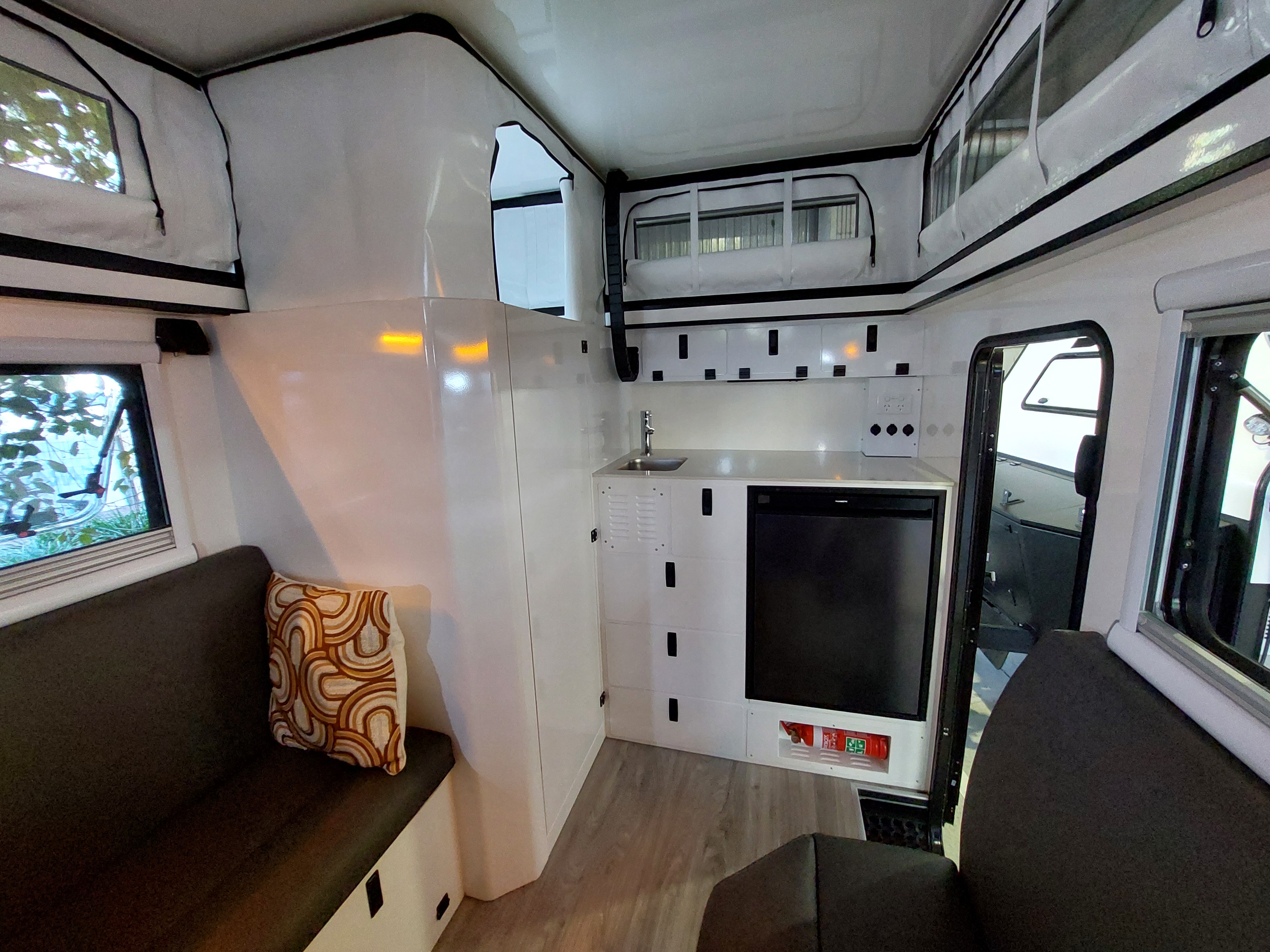

Interior

Cabinet construction:Aluminum cabinet construction
Kitchen benchtop:Corian benchtop
Kitchen sink:Square stainless sink
Kitchen tapware:Black model flix-mixer tap
Ensuite tapware:Black model flix-mixer tap and shower rose
Dinette:Table slides out from under mattress on glides
Lounge seating: Materials – colorMarine grade vinyl – grey
Lounge seating: ConfigurationCafé – seats opposite
Bed Mattress:Pillow top pocket box spring mattress – 173×203 (AUS) 5’08″x6’08” (USA)
Fire safety:Fire extinguisher and smoke detector
Berth:2 + 2 bunk option

Plumbing

Potable clean water tanks:3*120litre food grade plastic water tank (Aust.) 3x 31 gal (USA)
Water tank management:Water tank management manifold system in front toolbox
Water filter system:Dual filter water filtration system
Grey water tank:85L Aluminiumn Grey water tank (Aust.) 22 gal (USA)
Water tank guages:Individual Water tank level gauges
Water pump:12V Water pump
Water filler point:Water filler connection concealed in toolbox
Mains water:Mains pressure connection concealed in tool box
Gas supply:2x BBQ Gas bayonet
Gas bottles:2*2kg Gas bottles (Aust.) 2x 5 lbs Gas bottles (USA.)
Toilet:Compost toilet – constant fan and charcoal filter system
Internal Shower:Aluminium fabricated shower area with linear grill drain
External shower:2x External showers – both sides at front (hot and cold-water supply)

Entertainment and Communications

TVOptions/brands/spec. in review/selection
Sound SystemOptions/brands/spec. in review/selection
Mobile phone signal boosterOptions/brands/spec. in review/selection
GPS trackerOptions/brands/spec. in review/selection
